PRODUCT NAME

ICF CP2260

FUNCTIONAL DESCRIPTION

Remote Control Encoder

APPLICATIONS

Security

Remote control

GENERAL DESCRIPTION

ICF CP2260 is a remote control coding paired with ICF CP 2272 utilizing CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF modulation. ICF CP2260 has a maximum of 10 bit of tri-state address pins providing up to 59,049（3¹⁰）address codes, thereby, drastically reducing any code collision and unauthorized code scanning possibilities.

FEATURES

High performance CMOS technology

Low power consumption

Very high noise immunity

Wide range of operating voltage: 3V ~15V

Wide operating temperature range

2 or 4 data pins

8 or 10 tri-state code address pins

Single resistor oscillator circuit

Least external components

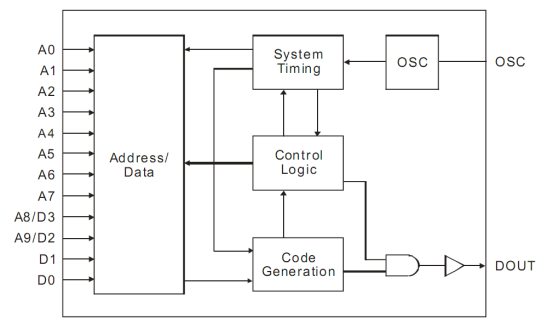

BLOCK DIAGRAM
