PRODUCT NAME

ICF CP2262

FUNCTIONAL DESCRIPTION

Remote Control Encoder

APPLICATIONS

Security

Remote control

GENERAL DESCRIPTION

ICF CP2262 is a remote control coding paired with ICF CP 2272 utilizing CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF or IR modulation. ICF CP2262 has a maximum of 12 bit of tri-state address pins providing up to 531,441（3¹²）address codes, thereby, drastically reducing any code collision and unauthorized code scanning possibilities.

FEATURES

CMOS technology

Low power consumption

Very high noise immunity

Wide range of operating voltage: 4V ~15V

Wide working temperature range

Up to 6 data pins

Up to 12 tri-state code address pins

Single resistor oscillator

Latch or momentary output type

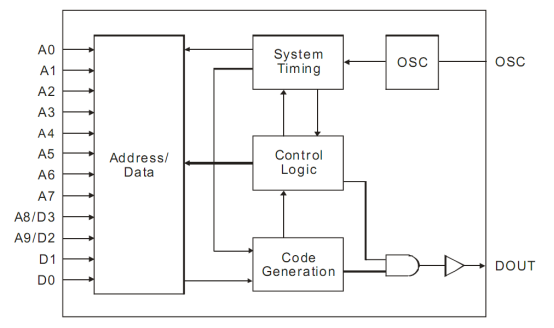

BLOCK DIAGRAM
