PRODUCT NAME

ICF CP0001

FUNCTIONAL DESCRIPTION

Infrared Induction Circuit

APPLICATIONS

Sensitive areas such as enterprises, hotel, shopping malls, warehouse

Automatic lighting, lighting and alarm systems

GENERAL DESCRIPTION

The ICF CP0001 is a sensor signal processing integrated circuit with high performance. The static current is very small, coupled with pyroelectric infrared sensor and a few peripheral components can constitute a passive pyroelectric infrared sensor. Widely used in security, self-control and other fields.

FEATURES

CMOS digital-analog hybrid integrated

Independent high input impedance

Can be matched with a variety of sensors, signal

Two way amplitude discriminator can effectively suppress interference

Built-in delay time timer and block tine timer

Working voltage range +3V~ +5V block diagram

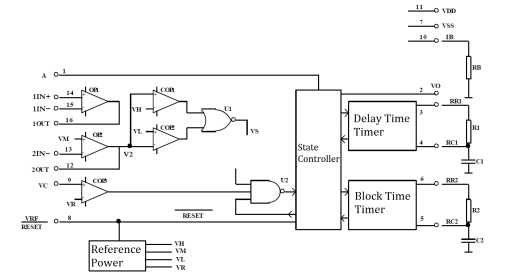

BLOCK DIAGRAM

ORDERING INFORMATION
