ICF CP2314Hangzhou Boon Electronics Co., Ltd. Release time：2018-12-28   Click to browse：4088Times

PRODUCT NAME

ICF CP2314

FUNCTIONAL DESCRIPTION

Buzzer Drive Special Circuit

APPLICATIONS

Buzzer Drive Special Circuit

GENERAL DESCRIPTION

The ICF CP2314 is a drive circuit with built-in oscillating buzzer. No need to connect any peripheral components, directly connected to the buzzer can work. Circuit built_in frequency tuning, so that the circuit frequency consistency performance is good.

FEATURES

The minimum working voltage is 1.8V

Built-in secondary diode

Built-in oscillation

Drive current 200mA

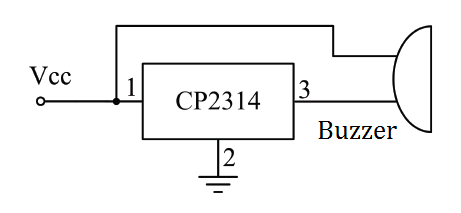

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF CP2314-20

SOT-23

Tape & Reel

ICF CP2314-21

ICF CP2314-22

ICF CP2314-23

ICF CP2314-24

ICF CP2314-25

ICF CP2314-26

ICF CP2314-27

ICF CP2314-28

ICF CP2314-29

ICF CP2314-30
