ICF TDA2003Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:3098Times

PRODUCT NAME

ICF TDA2003

FUNCTIONAL DESCRIPTION

10W Car Radio Audio Amplifier

APPLICATIONS

Car Radio

Tape Recorders

GENERAL DESCRIPTION

The ICF TDA2003 is a monolithic audio power amplifier integrated circuit.

FEATURES

Very low external component required.

High current output ( up to 3 A).

Low harmonic and crossover distortion.

Built-in Over temperature protection.

Short circuit protection between all pins.

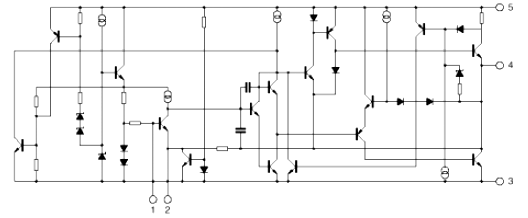

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF TDA2003

TO-220-5L

Tube
