PRODUCT NAME

ICF MC34063

FUNCTIONAL DESCRIPTION

DC-DC Controller

APPLICATIONS

Car charger

Industrial contral power supply

GENERAL DESCRIPTION

The ICF MC34063 Series is a monolithic control circuit containing the primary functions required for DC−to−DC converters. These devices consist of an internal temperature compensated reference, comparator controlled duty cycle oscillator with an active current limit circuit driver and high current output switch. This series was specifically designed to be incorporated in Step−Down and Step−Up and Voltage−Inverting applications with a minimum number of externa components.

FEATURES

Operation from 3.0 V to 36 V Input

Low Standby Current

Current Limiting

Output Switch Current to 0.8A/1.2A/1.5 A

Output Voltage Adjustable

Frequency Operation to 100 kHz

Step-up, Step-Down or Inverting Switching Regulators

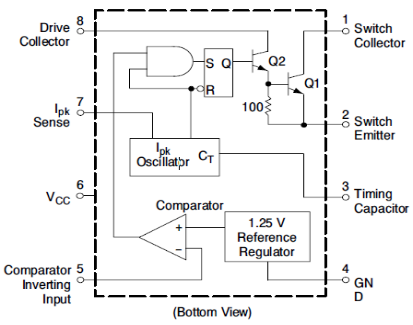

BLOCK DIAGRAM
