The ICF CP7520 is a pulse-width modulation (PWM) control circuit with complete protection circuits for used in the SMPS (Switched Mode Power Supply). It contains various functions, which are Over Voltage Protection, Under Voltage Protection, Power Good Output (PGO), Remote ON/OFF control and etc. It can minimize external components of switching power supply systems in personal computer.
Over Voltage protection (OVP) monitors 3.3V, 5V, 12V and PT input voltage level. Under Voltage Protection (UVP) monitors 3.3V, 5V and 12V input voltage level. Power Good Output monitors the voltage level of power supply.
|
|

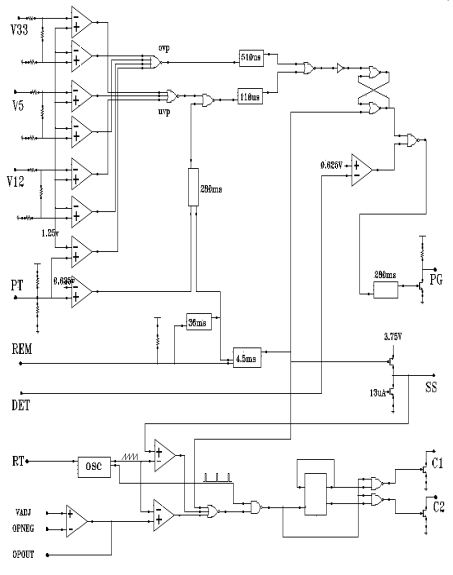

Complete PWM control and protection circuitry
Over voltage protection for 3.3V / 5V / 12V / PT
Under voltage protection for 3.3V / 5V / 12V
280ms PG time delay
Power good output is open drain output
PWM control output are open drain output
280ms time delay for UVP
Remote ON/OFF function de-bounce time
Soft-start function built-in
|
