PRODUCT NAME

ICF CP5011

FUNCTIONAL DESCRIPTION

Double Earth Leakage Current Detector

APPLICATIONS

High speed earth leakage circuit breaker

GENERAL DESCRIPTION

ICF CP5011 is a semiconductor integrated circuit with amplifier for a high-speed earth double leakage circuit breaker.

FEATURES

Good temperature characteristics of input sensitivity current

High input sensitivity (VT = 6.1mV Typ.)

Low external component count

High noise and surge-proof

Low power dissipation (Pd = 5mW Typ.) and may be used both as 110V and 220V.

High mounting density by SIL package with 8 pins

Wide temperature range

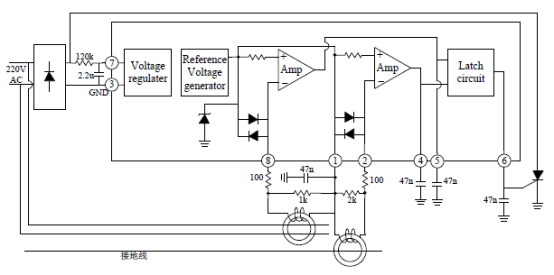

BLOCK DIAGRAM

ORDERING INFORMATION
